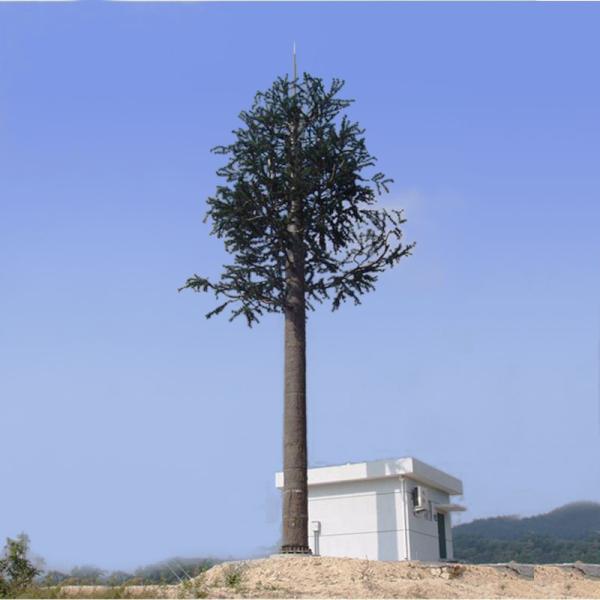

Cell Phone Tower Camouflaged Pine Tree Artificial Trees monopole
telecommunication Tower
Product Description
Bionic tree, also known as bionic tower and bionic communication
tower, belongs to communication tower. It is to make the
communication tower in harmony with the surrounding natural
environment. It has the advantage of connecting everything of the
original single tube tower. It has made a huge breakthrough and
innovation in its shape. Taking natural pine and camphor trees as
the simulation appearance samples, it conceives the sketch map and
computer result map, formulates the steps of sculpture and painting
technology, and simulates the single tube tower, Found that people
are into the nature of the tower around it does not exist.
| Raw Material |
No.1
| Grade | Mild Steel | High Tensile Steel |
| | GB/T 700:Q235B, Q235C,Q235D ASTM A36 EN10025: S235JR, S235J0,S235J2 | GB/T1591:Q345B, Q345C,Q3455D ASTM A572 Gr50 EN10025: S355JR, S355J0,S355J2 |
No.2
| Design Wind Speed | Up to 250km/h Or can be customized |
| No.3 | Acceptable Deflection | O.5~1.0 degree |
| No.4 | Tension Strength | 360~510 MPA | 470~630 MPA |
| No.5 | Yield strength (t≤16mm) (Mpa) | 355 | 235 |
| No.6 | Elongation (%) | 20 | 24 |
| No.7 | Impact strength KV (J) | 27(20°C)---Q235B(S235JR) | 27(20°C)---Q345B(S355JR) |
| | 27(0°C)---Q235C(S235J0) | 27(0°C)---Q345C(S355J0) |
| | 27(-20°C)---Q235D(S235J2) | 27(-20°C)---Q345D(S355J2) |
| Blots & Nuts |
| No.1 | Grade | Grade 4.8, 6.8, 8.8 |
| No.2 | Standards for mechanical properties | |
| No.3 | Bolts | ISO 898-1 |
| No.4 | Nuts | ISO 898-2 |
| No.5 | Washers | ISO 6507-1 |
| No.6 | Standards for Dimensions | |
| Bolts | DIN7990, DIN931, DIN933 |
| Nuts | ISO4032, ISO4034 |
| Welding |
| No.1 | Method | CO2 Shielded Arc Welding & Submerged Arc Welding(SAW) |
| No.2 | Standard | AWS D1.1 |
| Marking |
| Method of marking of the numbers | Hydraulic Press Stamping |
| Galvanized |
| No.1 | Galvanization standard of steel sections | ISO 1461 or ASTM A123 |
| No.2 | Galvanization standard of bolts and nuts | ISO 1461 or ASTM A153 |
| Test |
| Factory test | Tensile test,Elements analysis, Sharpy test(impact test), Cold Bending, Hammer test |
Overview
Quick Details
- Place of Origin:
Hebei, China
- Brand Name:
CT
- Model Number:
FST190311-9
- Product name:
Steel Communicaiton Tower
- Material:
Steel Q235B Q345B Q420
- Appearance Treatment:
Hot-dip galvanized/powder coated/painting
- Height of Tower:
10m-50m/Customized
- Connection structure:
flange connection
- Design wind speed:
30m/s
- Antenna Type:
GSM, RRU,CDMA, MW etc.
- Branch type:
pine/Palm
- Lifetime:
30 Years
- Structure:
Monopole
Supply Ability
- Supply Ability:
- 1000 Meter/Meters per Month
Packaging & Delivery
- Packaging Details
- Container transpor, the general situation of the tower for metal
reinforcement bind.
- Port
- TianJin Port
- Lead Time :Quantity(Meters)1 - 10>10Est. Time(days)20To be
negotiated
Product Details
Foliage and branch: made of same material as bark and properly designed according to
the true tree leaves character such as leaf shape , size ,layout
and quantities. The material of foliage also will guarantee
radio-electric transparency and keep good mechanical and color
characteristics (anti-UV) for a long time.
Trunk body: made of 24-sides polygonal steel poles,
composed of several shafts, and connected by sleeve joinT,Height
range can be varying from 15m to 35m, according to customer’s
requirements.
Our Company
Hebei Chang Tong Steel Structure Co., Ltd..located in the hometown of China Tower, is a modern big-scale
professional company fabricating triangular
communicationtower,four-corner communication tower, cable tower,
single-tube tower,
camouflage communication tower and transmission
linetower.integrating design,fabrication and marketing,annual
production capacity reaches more than 30,000 tons.Company always
adhere to the business strategy of "survive
by quality, develop by credit, increase efficiency by science and
technology", continuously carry out technical transformation,
complete production equipment, reliable production process,adopt
advanced CNC angle steel production line, CNC sheet
production line and various supporting equipment. The equipment has
a first-class iron tower stakeout center, all of
which implement microcomputer lofting, which guarantees the
processing quality and provides a strong guarantee for
production, which can fully meet the design and production
requirements of various types of towers and substation
structures.
Our steel tower products have won good reputation from our
customers,including China tower,China mobile,China
unicom,China telecom,State grid and so on.In addition,our products
also were exported to many countries and
areas,including South American,Africa,Southeast Asia and Ireland.
