Camouflaged palm tree Monopole Tower Telecommunication Tubular
steel Tower
Overview
Quick Details
- Place of Origin:
Hebei, China
- Brand Name:
CT
- Model Number:
FST190311-9
- Product name:
Steel Communicaiton Tower
- Material:
Steel Q235B Q345B Q420
- Appearance Treatment:
Hot-dip galvanized/powder coated/painting
- Height of Tower:
10m-50m/Customized
- Connection structure:
flange connection
- Design wind speed:
30m/s
- Antenna Type:
GSM, RRU,CDMA, MW etc.
- Branch type:
pine/Palm
- Lifetime:
30 Years
- Structure:
Monopole
Supply Ability
- Supply Ability:
- 1000 Meter/Meters per Month
Packaging & Delivery
- Packaging Details
- Container transpor, the general situation of the tower for metal
reinforcement bind.
- Port
- TianJin Port
- Lead Time :
| Quantity(Meters) | 1 - 10 | >10 |
| Est. Time(days) | 20 | To be negotiated |
Product Description

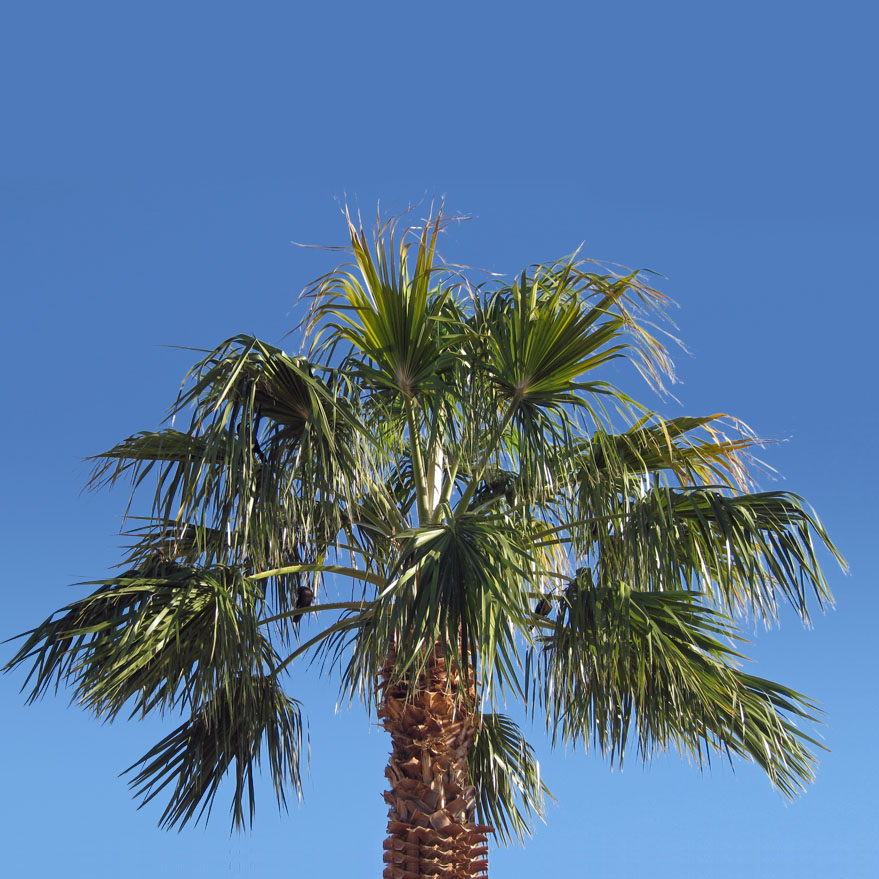

Camouflage towers are typically used in urban areas when the need
to reduce visual impact on the environment is a concern. They are
often seen in the form of artificial pine trees, palm trees, clock
towers and even in the form of artificial cacti.
The resulting fronds are true to life in size and in the way it
flexes in the wind when compared to their natural counterparts. In
addition to the natural appearance and wind action, all fronds are
RF transparent and extend beyond the face of the antenna array.
Wind Tunnel tests of frond assemblies have had excellent
survivability in winds in excess of 80mph.
We also offers Algae Palm tree designs with the antennas inside the
trunk, Pineapple, and even a dead frond radome with no antennas
visible. This configuration offers the ultimate in tree
concealment.
| Raw Material |
No.1
| Grade | Mild Steel | High Tensile Steel |
| | GB/T 700:Q235B, Q235C,Q235D ASTM A36 EN10025: S235JR, S235J0,S235J2 | GB/T1591:Q345B, Q345C,Q3455D ASTM A572 Gr50 EN10025: S355JR, S355J0,S355J2 |
No.2
| Design Wind Speed | Up to 250km/h Or can be customized |
| No.3 | Acceptable Deflection | O.5~1.0 degree |
| No.4 | Tension Strength | 360~510 MPA | 470~630 MPA |
| No.5 | Yield strength (t≤16mm) (Mpa) | 355 | 235 |
| No.6 | Elongation (%) | 20 | 24 |
| No.7 | Impact strength KV (J) | 27(20°C)---Q235B(S235JR) | 27(20°C)---Q345B(S355JR) |
| | 27(0°C)---Q235C(S235J0) | 27(0°C)---Q345C(S355J0) |
| | 27(-20°C)---Q235D(S235J2) | 27(-20°C)---Q345D(S355J2) |
| Blots & Nuts |
| No.1 | Grade | Grade 4.8, 6.8, 8.8 |
| No.2 | Standards for mechanical properties | |
| No.3 | Bolts | ISO 898-1 |
| No.4 | Nuts | ISO 898-2 |
| No.5 | Washers | ISO 6507-1 |
| No.6 | Standards for Dimensions | |
| Bolts | DIN7990, DIN931, DIN933 |
| Nuts | ISO4032, ISO4034 |
| Welding |
| No.1 | Method | CO2 Shielded Arc Welding & Submerged Arc Welding(SAW) |
| No.2 | Standard | AWS D1.1 |
| Marking |
| Method of marking of the numbers | Hydraulic Press Stamping |
| Galvanized |
| No.1 | Galvanization standard of steel sections | ISO 1461 or ASTM A123 |
| No.2 | Galvanization standard of bolts and nuts | ISO 1461 or ASTM A153 |
| Test |
| Factory test | Tensile test,Elements analysis, Sharpy test(impact test), Cold Bending, Hammer test |
Camouflage Tower
The algae tree bark is molded from custom formulated polyurethane;
approximately one and a half pounds per square foot. The bark is
made from molds created from actual algae tree bark. The natural
curve, cracks and texture of true bark is re-created in true to
life detail. Artisans then finish the bark with appropriate
painting and highlighting, creating a very naturalistic look.
As with all our poles, the bark is adhered to a pole that has
already been hot dip galvanized offering yet another layer of
protection from the elements. With no maintenance required, the
bark life expectancy is well over 30 years. If fading occurs over
time the bark can easily be repainted.
Product Details
Our Company
Hebei Chang Tong Steel Structure Co., Ltd..located in the hometown of China Tower, is a modern big-scale
professional company fabricating triangular
communicationtower,four-corner communication tower, cable tower,
single-tube tower,
camouflage communication tower and transmission
linetower.integrating design,fabrication and marketing,annual
production capacity reaches more than 30,000 tons.Company always
adhere to the business strategy of "survive
by quality, develop by credit, increase efficiency by science and
technology", continuously carry out technical transformation,
complete production equipment, reliable production process,adopt
advanced CNC angle steel production line, CNC sheet
production line and various supporting equipment. The equipment has
a first-class iron tower stakeout center, all of
which implement microcomputer lofting, which guarantees the
processing quality and provides a strong guarantee for
production, which can fully meet the design and production
requirements of various types of towers and substation
structures.
Our steel tower products have won good reputation from our
customers,including China tower,China mobile,China
unicom,China telecom,State grid and so on.In addition,our products
also were exported to many countries and
areas,including South American,Africa,Southeast Asia and Ireland.
