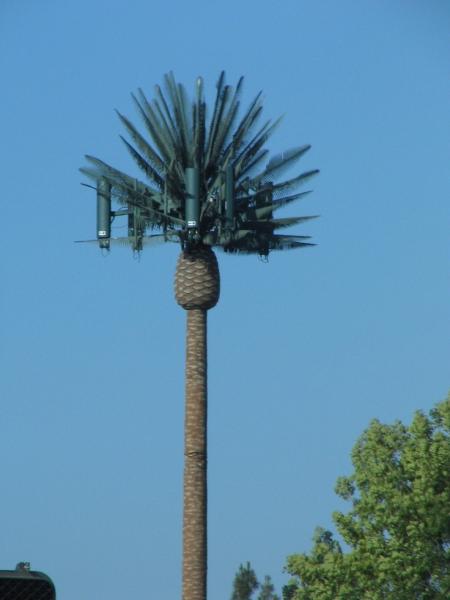

GSM Camouflaged Pine Tree Frond Monopole Palm Tree Communication
Antenna Tower
Product Description
Maintaining all the advantages of single tube tower, camouflage
tower makes a great breakthrough and improvement in the appearance.
We make the bionic tower look like real pine, camphor tree by
designing sketch and the computerized picture, sculpturing and
painting process, thereby the existence of tower, is not realized,
and put it into the surrounding natural environment.
Design specification
Camouflaged tower / Bionic tree tower / Palm tree tower / Pine tree
tower
| Height | 0-40m |
| Wind pressure | 0~1kN/m2 (Chinese standard, other country's standard may change
based on it) |
| Wind speed | 0~180km/h (American standard 3s gust) |
| Foundation type | Independent foundation/Raft foundation/Pile foundation |
| Environment condition | Soft ground/Mountain groud |
| Type | Single pole |
| Quality system | ISO 9001:2008/TL9000 |
| Design standard | Chinese relative regulation/American standard G/American standard F |
| Material | Q235/Q345//Q390/Q420/Q460/GR65 |
| Galvanized | Hot dip galvanization (86μm/65μm) |
| Connection structure | Flange/ Plugging |
| Lifetime | 30years/50years/100years |
Features:
1. Exquisite structure and gorgeous appearance. On base of actual
plant, the bionic tower looks like a real one, plus the meticulous
design, when placed among the real trees in sightseeing area, park,
and square, it will be a part of the nature. The novel and unique
large wire frame takes place of the traditional platform. Hidden in
the leaves, so they will not affect the beauty of tower.
2. Strong structural stability and excellent technology. Tower
footing adopts independent reinforced concrete structure, so the
tower can effectively avoid uneven subsidence of foundation. Fixed
splint for feeder wires is equipped inside the tower to prevent the
feeder wires from sun, rain and wind, effectively solve damage
factor, thereby extend their working life. Every section of tower
body is connected by fine finishing inner flange, this design can
guarantee the concentricity and perpendicularity, and avoid
security risks of other connecting way
3. Small area covering and great economic effect. Tower adopts
conical tube structure with area of 1-2 square meters, and
foundation area of 4-6 square meters. Meanwhile there is no need to
build base station walls, so it will save land resources and the
cost(especially in town).
4. Long working life and lasting appearance effect. Owing to the
relatively small force outside, rational structure and good
materials, service life of the tower is longer. On the surface we
adopt hot galvanization technology, so the tower has good corrosion
resistance performance. Meanwhile, on the surface are simulated
tree barks, like simulated leaves, which are made of advanced
composite materials with waterproof, fireproofing and anticorrosion
performance, so they can maintain the appearance without
exfoliation.
Overview
Quick Details
- Place of Origin:
Hebei, China
- Brand Name:
CT
- Model Number:
FST190311-9
- Product name:
Steel Communicaiton Tower
- Material:
Steel Q235B Q345B Q420
- Appearance Treatment:
Hot-dip galvanized/powder coated/painting
- Height of Tower:
10m-50m/Customized
- Connection structure:
flange connection
- Design wind speed:
30m/s
- Antenna Type:
GSM, RRU,CDMA, MW etc.
- Branch type:
pine/Palm
- Lifetime:
30 Years
- Structure:
Monopole
Supply Ability
- Supply Ability:
- 1000 Meter/Meters per Month
Packaging & Delivery
- Packaging Details
- Container transpor, the general situation of the tower for metal
reinforcement bind.
- Port
- TianJin Port
- Lead Time :Quantity(Meters)1 - 10>10Est. Time(days)20To be
negotiated
Product Details
Foliage and branch: made of same material as bark and properly designed according to
the true tree leaves character such as leaf shape , size ,layout
and quantities. The material of foliage also will guarantee
radio-electric transparency and keep good mechanical and color
characteristics (anti-UV) for a long time.
Trunk body: made of 24-sides polygonal steel poles,
composed of several shafts, and connected by sleeve joinT,Height
range can be varying from 15m to 35m, according to customer’s
requirements.
Our Company
Hebei Chang Tong Steel Structure Co., Ltd..located in the hometown of China Tower, is a modern big-scale
professional company fabricating triangular
communicationtower,four-corner communication tower, cable tower,
single-tube tower,
camouflage communication tower and transmission
linetower.integrating design,fabrication and marketing,annual
production capacity reaches more than 30,000 tons.Company always
adhere to the business strategy of "survive
by quality, develop by credit, increase efficiency by science and
technology", continuously carry out technical transformation,
complete production equipment, reliable production process,adopt
advanced CNC angle steel production line, CNC sheet
production line and various supporting equipment. The equipment has
a first-class iron tower stakeout center, all of
which implement microcomputer lofting, which guarantees the
processing quality and provides a strong guarantee for
production, which can fully meet the design and production
requirements of various types of towers and substation
structures.
Our steel tower products have won good reputation from our
customers,including China tower,China mobile,China
unicom,China telecom,State grid and so on.In addition,our products
also were exported to many countries and
areas,including South American,Africa,Southeast Asia and Ireland.
