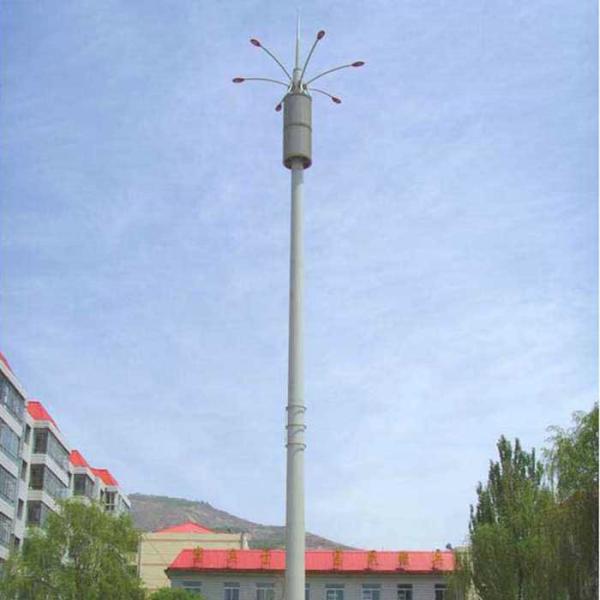

40m Hot DIP Galvanized Octagonal Tapered Monopole Antenna Tower
Mobile Telecom Light Tower
Monopole tower
Steel monopole
Steel monopole consists of tower body and platform. There is an
opening on the bottom level of tower body and another
opening up to the same level with platform. The ladder is fixed to
the handrail of platform. Monopole is characterized by
the ladder and feeders which are installed inside the tower body.
Protected from the wind and rain and other natural
environmental destructive factors, it is convenient for maintenance
and long-life use.
Products Specifications
| Height | 5m ~80 m |
| Suit for | Airport ,seaport,plaza,stadium ,square,highway,street way etc |
| Shape | Conoid ,Multi-pyramidal,Columniform,polygonal or conical |
| Material | Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52-3 |
| Torlance of dimenstion | +- 2% |
| Design detail | Cable and Ladder inside or outside as request or design |
| Working &Resting Platform | 1~3 pcs at the top or in the middle |
| Antenna Support | 3-18 PCS |
| Microwave Dish | 3-18 PCS |
| Design Load in Kg | 300~ 1000 Kg appliced to 50cm from the to pole |
| Marks | Nane palte through rivert or glue ,engrave ,emboss as per customer
requirement |
| Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester power or
any other standard by client required. |
| Joint of Poles | Insert mode,innerflange mode,face to face joint mode |
| Design of pole | Against earthquake of 8 grade |
| Wind Speed | 5-300 KM/H |
| Minimum yield strength | 355 mpa |
| Minimum ultimate tensile strength | 490 mpa |
| Standard | 620 mpa |
| Length of per section | ISO 9001 |
| Welding | Within 14m once forming without slip joint |
| We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1 |
| Thickness | 1 mm to 30 mm |
| Production Process | Rew material test → Cuttingj →Molding or bending →Welidng
(longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration →
Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages |
| Packages | Our poles as normal cover by Mat or straw bale at the top and
bottom ,anyway also can following by client required , each 40HC or OT can loading how many
pcs will calculation base on the client actually specification and data. |
Material Test and Sample
1 All of our material are purchased from famous mill factory to
assure the quality
2 A mill certificate issued by the mill factory with stamp and
signature must be provided before unload the material in our
factory ,
otherwise we have our reason to refuse the material .
3 Before put into production ,all the material must pass the
chemical and physical analysis to make sure that they have meet the
requested strength and component.
Quick Details
- Place of Origin:
Hebei, China
- Brand Name:CT
- Model Number:
DGT190311-2
- Product name:
Hot galvanized telecom monopole tower
- Material:
SteelQ345/Q235
- Appearance Treatment:
Hot-dip galvanized/powder coated/painting
- Height of Tower:
15m-80m/Customized
- Connection structure:
flange connection/bolts connection
- Maximum Design Wind Speed:
32m/s
- Quantity of Platform:
2/3/Customized
- Antenna Type:
GSM, RRU,CDMA, MW etc.
- Lifetime:
More than 30 Years
- design software:
MS TOWER
Supply Ability
- Supply Ability:
- 20000 Ton/Tons per Year
Packaging & Delivery
- Packaging Details
- Container transpor, the general situation of the tower for metal
reinforcement bind.
- Port
- TianJin Port
- Lead Time :
| Quantity(Tons) | 1 - 10 | >10 |
| Est. Time(days) | 20 | To be negotiated |
Product Show
Production Process
