Communication Antenna 30m Wifi Tower Telecom Price Supported Steel
Cell 40m 30 Meter Monopole Tower
Monopole tower
This product is a kind of self-supported steel structure tower,
which takes the conical steel pipe as the main structure. The
section is circular or polygonal. The ladder can be set on either
inside or outside of the steel pipe. The upper end of the tower is
equipped with a working platform, and the antenna bracket is fixed
on the fence of it.
Telecommunication Tower- Goods description and major parameters
| No. | Description | Detailed Specification and Major design Parameters |
| 1 | Design Code | ANSI/TIA222G, European Standard and others |
| 2 | Design Loading | 1. Antenna load area as per specified by Clients worldwide. 2. Wind speed as per requested by the clients. 3. Deflection & Twist Angle, Exposure category, Topographic
category as per specified by clients. |
| 4 | Structure Classification | II |
| 5 | Hot-dip galvanization | ISO 1461 2009, ASTM A123 |
| 6 | Steel Grade | 1. High strength low alloy structural steel: Q420B which is
equivalent with ASTM Gr60 2. High strength low alloy structural steels: Q345B which is
equivalent with ASTM Gr50 or S355JR 3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36
or S235JR |
| 7 | Bolts and Nuts | Mainly ISO 898 grade 6.8 and 8.8 bolts |
| 8 | Foundation | 50KPa, 100KPa, 150KPa soil bearing capacity mainly. |
| 9 | Tower Type | 1. 3 Leg Self supported Angular Towers 2. 3 Leg Self supported Tubular Towers 3. 4 Leg Self supported Angular Towers 4. 4 Leg Self supported Tubular Towers 5. Guyed Mast 6. Monopole Tower 7. Camouflaged Tower: Palm Tree, Pine Tree, Coconut and others tree 8. RDS Tower: Rapid Deploy Site/Tower 9. Rooftop Towers 10. Smart Poles |
| 10 | Warranty | 1. Tower structures: 10 years 2. Camouflaged towers a. Barks: 10 years b. Branches and leaves: 3 years |
| 11 | Return Period | 50 Years |
| 12 | Accessories | 1. Paint kits (ICAO standards): Water Based Acrylic Anticorrosive
Paint which include Primer, International Orange/Red and Ivory
White 2. Aviation Light: 48V/220V Double Light and Single Light & Solar
Light 3. Lightning System: Lightning rod with 70mm2 G/Y copper cable down
conductor or 25x3mm copper flat tape with clamps, and copper coated
steel busbars or as per specified by clients. 4. Earthing System: Earthing Rod with copper clad steel strand
cable and lugs etc. or as per specified by Clients. 5. ACDB as per specified by clients 6. Fencing: Palisade fence and wire mesh fence with razor wires and
gate. 7. Fall arrest system: GB and CE certificate fall arrest system. 8. Optical Fiber Cable: as per specified by client 9. Generator: as per specified by client 10. Canopy and Generator Cage: as per specified by clients |
Product Show
Our Company
Hebei Chang Tong Steel Structure Co., Ltd..
located in the hometown of China Tower, is a modern big-scale
professional company fabricating triangular communicationtower,
four-corner communication tower, cable tower, single-tube tower,
camouflage communication tower and transmission line
tower.integrating design,fabrication and marketing,annual
production capacity reaches more than 30,000 tons.
Company always adhere to the business strategy of "survive
by quality, develop by credit, increase efficiency by science and
technology", continuously carry out technical transformation,
complete production equipment, reliable production process,
adopt advanced CNC angle steel production line, CNC sheet
production line and various supporting equipment. The
equipment has a first-class iron tower stakeout center, all of
which implement microcomputer lofting, which guarantees the
processing quality and provides a strong guarantee for
production, which can fully meet the design and production
requirements of various types of towers and substation
structures.
Our steel tower products have won good reputation from our
customers,including China tower,China mobile,China
unicom,China telecom,State grid and so on.In addition,our
products also were exported to many countries and
areas,including South American,Africa,Southeast Asia and
Ireland.
Production Process

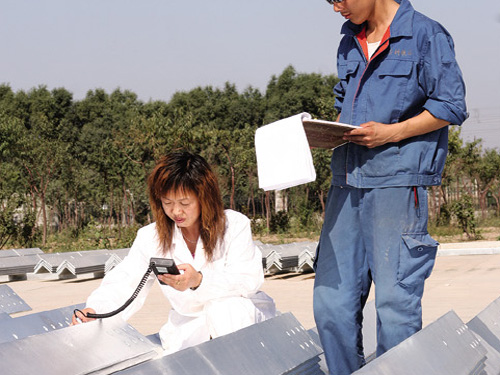

Detection
