40m Telecommunication Steel Monopole Tower Communication Tower
Overview

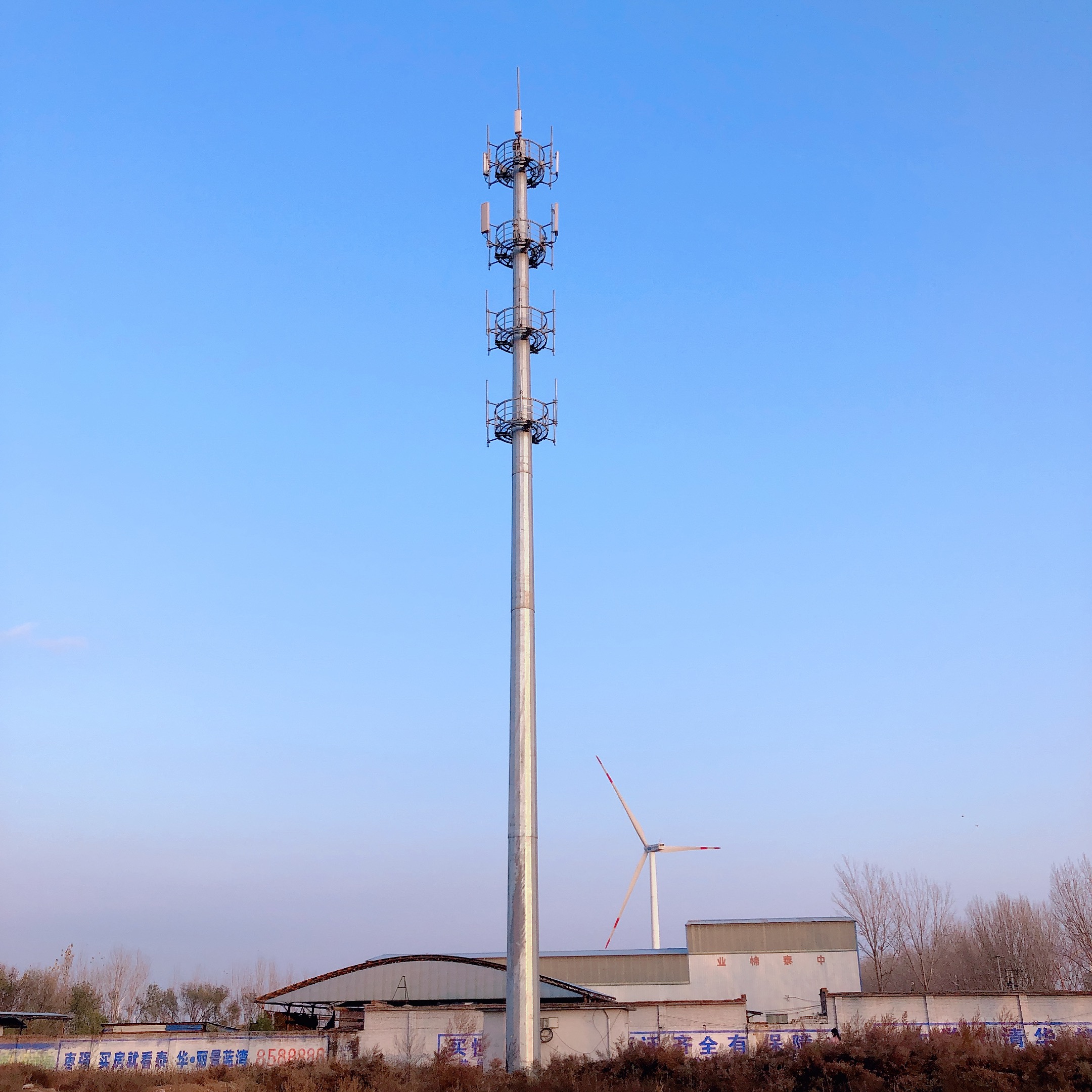

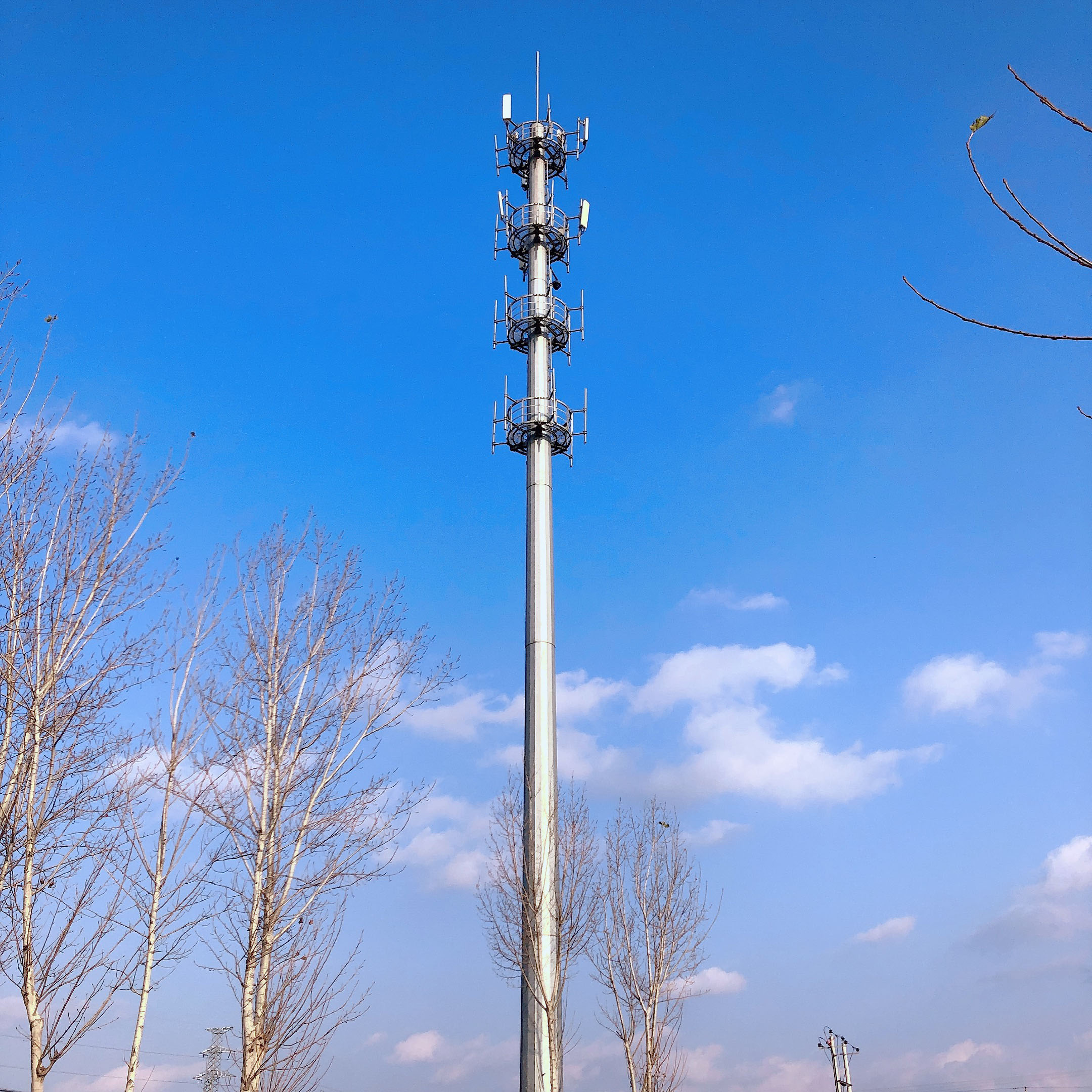

Steel monopole
Steel monopole consists of tower body and platform. There is an
opening on the bottom level of tower body and another
opening up to the same level with platform. The ladder is fixed to
the handrail of platform. Monopole is characterized by
the ladder and feeders which are installed inside the tower body.
Protected from the wind and rain and other natural
environmental destructive factors, it is convenient for maintenance
and long-life use.
Our company mainly products steel communication monopole, landscape
tower, The bionic tower, Four leg tubular tower, three leg tubular
tower, Three tube tower, guy wire tower,the antenna of beauty,mast,
Integration of portable base station and power tower and so on .
Also, we can offer OEM service, and product the steel tower
according to the customer's design and requirment.
At the same time,the tower products have been passed the
certifications of GB/T19001-2008-ISO9001,GB/T 24001-2004-ISO
14001,GB/T28001-2001.At present the company is committed to
overseas market development,and we hope to establish the business
relationship with overseas customers for a long time.
Quick Details
- Place of Origin:
Hebei, China
- Brand Name:CT
- Model Number:
DGT190311-2
- Product name:
Hot galvanized telecom monopole tower
- Material:
SteelQ345/Q235
- Appearance Treatment:
Hot-dip galvanized/powder coated/painting
- Height of Tower:
15m-80m/Customized
- Connection structure:
flange connection/bolts connection
- Maximum Design Wind Speed:
32m/s
- Quantity of Platform:
2/3/Customized
- Antenna Type:
GSM, RRU,CDMA, MW etc.
- Lifetime:
More than 30 Years
- design software:
MS TOWER
Supply Ability
- Supply Ability:
- 20000 Ton/Tons per Year
Packaging & Delivery
- Packaging Details
- Container transpor, the general situation of the tower for metal
reinforcement bind.
- Port
- TianJin Port
- Lead Time :
| Quantity(Tons) | 1 - 10 | >10 |
| Est. Time(days) | 20 | To be negotiated |
Monopole tower
| Height | 5m ~80 m |
| Suit for | Airport ,seaport,plaza,stadium ,square,highway,street way etc |
| Shape | Conoid ,Multi-pyramidal,Columniform,polygonal or conical |
| Material | Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52-3 |
| Torlance of dimenstion | +- 2% |
| Design detail | Cable and Ladder inside or outside as request or design |
| Working &Resting Platform | 1~3 pcs at the top or in the middle |
| Antenna Support | 3-18 PCS |
| Microwave Dish | 3-18 PCS |
| Design Load in Kg | 300~ 1000 Kg appliced to 50cm from the to pole |
| Marks | Nane palte through rivert or glue ,engrave ,emboss as per customer
requirement |
| Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester power or
any other standard by client required. |
| Joint of Poles | Insert mode,innerflange mode,face to face joint mode |
| Design of pole | Against earthquake of 8 grade |
| Wind Speed | 5-300 KM/H |
| Minimum yield strength | 355 mpa |
| Minimum ultimate tensile strength | 490 mpa |
| Standard | 620 mpa |
| Length of per section | ISO 9001 |
| Welding | Within 14m once forming without slip joint |
| We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1 |
| Thickness | 1 mm to 30 mm |
Product Show
Our Company
Hebei Chang Tong Steel Structure Co., Ltd..located in the hometown of China Tower, is a modern big-scale
professional company fabricating triangular
communicationtower,four-corner communication tower, cable tower,
single-tube tower,
camouflage communication tower and transmission
linetower.integrating design,fabrication and marketing,annual
production capacity reaches more than 30,000 tons.Company always
adhere to the business strategy of "survive
by quality, develop by credit, increase efficiency by science and
technology", continuously carry out technical transformation,
complete production equipment, reliable production process,adopt
advanced CNC angle steel production line, CNC sheet
production line and various supporting equipment. The equipment has
a first-class iron tower stakeout center, all of
which implement microcomputer lofting, which guarantees the
processing quality and provides a strong guarantee for
production, which can fully meet the design and production
requirements of various types of towers and substation
structures.
Our steel tower products have won good reputation from our
customers,including China tower,China mobile,China
unicom,China telecom,State grid and so on.In addition,our products
also were exported to many countries and
areas,including South American,Africa,Southeast Asia and Ireland.
