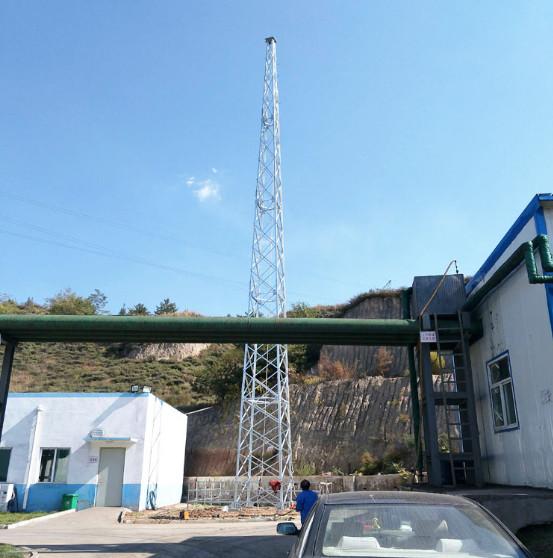

    ISO 9001 2008 100 meter Q235 Q345 Lightning Tower

    Ask Lasest Price
    Brand Name : ChangTong
    Model Number : JGT190409-2
    Certification : ISO9001:2008
    Price : USD1000-15000
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 20000Tons/year
    Delivery Time : 30-45days
    • Product Details
    • Company Profile

    ISO 9001 2008 100 meter Q235 Q345 Lightning Tower

    Durable Q235 Q345 Galvanized Lightning Protection Tower System Factory Manufacturer


    Feautures:
    Specification
    Type
    Straight Pole ,Suspension Pole ,Turn Pole, Terminal Pole,
    Suit for
    Pole For Lightning Protection
    Shape
    Multi-pyramidal,Columniform, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc)
    Material
    Usually Q345B/A572,minimum yield strength>=345n/mm2
    Q235B/A36,minimum yield strength>=235n/mm2
    As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490ST52, and others equivalent steel material
    Power
    10 KV ~220 KV
    Safety Factor
    Safety factor for conducting wine : 8
    Safety factor for grounding wine : 8
    Standard
    ISO 9001:2008
    Surface treatment
    Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
    Joint of Poles
    Slip joint , flange connected
    Wall Thickness
    2~30mm
    Height
    From 9 meter to 100 meter
    Length of per section
    Within 14m once forming without slip joint.
    Welding
    flaw testing.Internal and external double welding makes the welding good
    Welding Standard :AWS ( American Welding Society ) D 1.1
    Bolts and Nuts
    Mainly ISO 898 grade 6.8 and 8.8 bolts for Both Chinese, ISO and DIN standard
    Base plate
    Base plate is square/round/Polygon with slotted holes for anchor bolt and dimension as per client's requirement.
    Marks
    Nane palte through rivert or glue ,engrave ,emboss as per customer requirement
    Production Process
    Rew material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration →
    Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages→Delivery

    Product Show

    Early discharge time:


    Size of Lightning ArresterEarly discharge time
    3.3>25μs
    4.3>34μs
    5.3>43μs
    6.3>52μs

    Maxium radius of protection:


    Lightning protection radius
    Building height(m)3.34.35.36.3
    First kind of lightning protection building45m54m63m70m
    Second kind of lightning protection building65m74m84m92m
    Third kind of lightning protection building75m85m95m

    102m

    Our Company

    Hebei ChangTong steel tower Co., Ltd. located in the hometown of China Tower, is a modern big-scale professional company fabricating triangular communicationtower,four-corner communication tower, cable tower, single-tube tower,camouflage communication tower and transmission line tower.integrating design,fabrication and marketing,annual
    production capacity reaches more than 30,000 tons.
